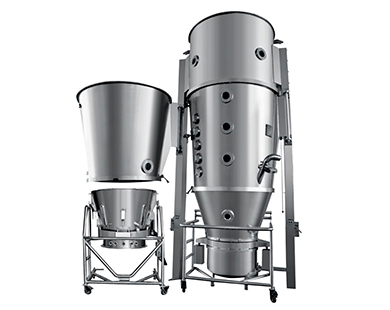

This machine is a multi-functional boiling granulator which integrates top spraying, bottom spraying and side spraying functions.It has many functions, such as mixing, drying, granulating, coating, pelleting and so on.It is widely used in pharmaceutical, food, chemical and other industries.The machine is composed of air purification heating system, main fluidized bed system, top spraying granulation system, bottom spraying coating system, side spraying pellet system, exhaust and dust removal power system, control system, etc.Top spraying completes pelletizing function; bottom spraying completes pellet coating function; side spraying completes pelletizing function.All the above functions are realized in the same multi-functional boiling granulator.
application
Granulation and coating in pharmaceutical industry: tablet granule, granule, capsule granule, etc.Granulation and coating in food industry: cocoa, coffee, milk powder, granular juice, condiments, etc.Granulation and coating in other industries: pesticides, pigments, dyes, etc.Drying of powdery or granular wet materials.Coating: granules, protective layer of pills, color preparation, slow release, film, enteric coating, etc.Features The machine adopts modular design and is equipped with three or any of them or two functions according to customer requirements; The machine is equipped with a complete functional system of top, bottom and side spraying, which can easily realize the functions of drying, granulating, coating and pelleting; Intake air treatment unit contains primary effect G4, intermediate effect F8, high efficiency H13 three-stage filter, surface cooling and dehumidification; Anti-static.Electric filter cloth, safe operation of equipment; Dust collecting system can be designed and selected according to requirements to ensure environmental protection requirements; Set pressure relief holes, once explosion occurs, equipment personnel will not be harmed; Equipment without dead angle, loading and unloading material is light, fast, clean, meet GMP specifications.
_The machine is fully controlled by PLC. All the operations are completed automatically according to the user's requirements. It can print all the process parameters, which fully meets the GMP requirements of pharmaceutical production.
Optional configuration
On-line Cleaning of Explosion-proof and Back-blown Sampling Port by CIP for Frequency Conversion Vacuum Feeding of Fluidized Bed Granulator with Bottom Spray Coating

project		Model
		Company	3	5	15	30	60	120	200	300	500
Raw material container	Capacity	L	12	22	45	100	220	420	670	1000	1500
	diameter	A kind of	300	400	550	700	1000	1200	1400	1600	1800
Throughput	Small	A kind of	1.5	4	10	15	30	80	100	150	250
	large	A kind of	4.5	6	20	45	90	160	300	450	750
Fan	Air volume	M3/h	1000	1200	1400	1800	3000	4500	6000	7000	8000
	wind pressure	H2O	375	375	480	480	950	950	950	950	950
	power	KW	3	4	5.5	7.5	11	18.5	22	30	45
Steam consumption		Kg/h	15	23	42	70	141	211	282	366	451
compressed air Consumption		M3/min	0.9	0.9	0.9	0.9	1.0	1.0	1.1	1.5	1.5
Host weight		Kg	500	700	900	1000	1100	1300	1500	1800	2000
Steam pressure		Mpa	0.3~ 0.6
temperature		Temperature	Adjustable temperature range from room temperature to 120 C
Operation time		Min	40-90 depending on material characteristics
Material yield		%	More than 99
Noise		DB (A)	Isolated installation of fan and main engine, noise < 75dB (A)
Host shape Dimension (L X W X H)		M	1 x 0.6 * 2.1	1.2 x 0.7 * 2.1	1.25 x 0.9 * 2.5	1.6 x 1.1 * 2.5	1.85 x 1.4 * 3	2.2 x 1.65 * 3.3	2.34 x 1.7 * 3.8	2.8 x 2 * 4	3 x 2.25 * 4.4
The above data are designed for our company and can be produced according to customer's requirements. Please contact us at 025-85718786/025-85769880.
